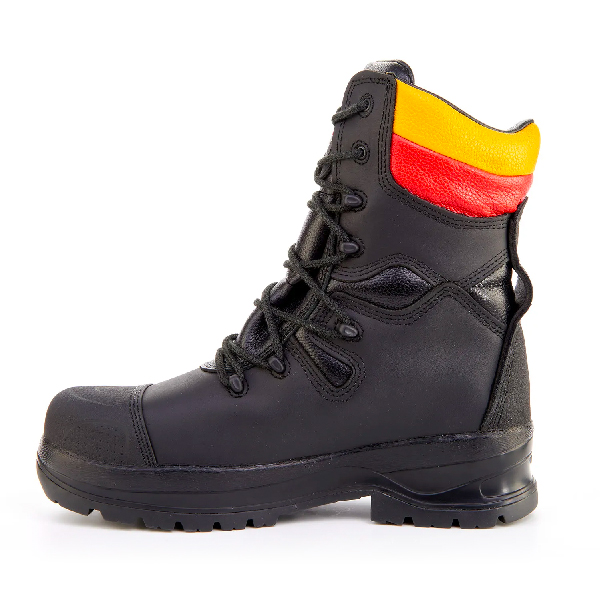

Arc-side-profile_shadows

Arc - RF810

Sizes: UK 5-13 (INC 6.5 and 10.5) - Size guide
Height: 8.5 Inches
Shoe weight: 1095g
Specification:
EN ISO 20345:2011 SB P CI E FO WRU HRO WR SRC
AS/NZ 2210.3:2019 SB P CI E FO WRU HRO WR SRC
ASTM F 2413-18 M/I/C EH PR

Product description

THIS CHANGES EVERYTHING… AGAIN

The RF810 Arc is a pioneering development in Safety Footwear. It’s an Electrical Hazard linesworker boot that has been independently put through the IEC 61482-1-1:2019 Thermal Hazards of an Electric Arc test method. It’s manufactured using fire resistant laces, Helcor® upper and lining materials and R-TEN™ stitching threads.

The results, whilst not covered by the ENAC accreditation scope, exceeded the capabilities of the lab, rating the boot as follows:

Material project ATPV = 126Cal/cm²

Whole Footwear No Burns Observed = 109.4 Cal/cm²

Why Not? Do all you can to protect wearers against the most catastrophic accidents?

In addition, Arc is the ultimate equipment for the harshest environments in all weather conditions thanks to the Moisture-tech by Sympatex® waterproof membrane, tested for a best in class, 100 hours.

Arc is quickly becoming a widely specified boot in Construction, Civils and Utilities due its Electrical Hazard rating. Certified to withstand electrical risks of 18kV in accordance with the ASTM F2412-18 test method.

It has a 100% non metallic construction, including a fibreglass toecap and composite midsole.

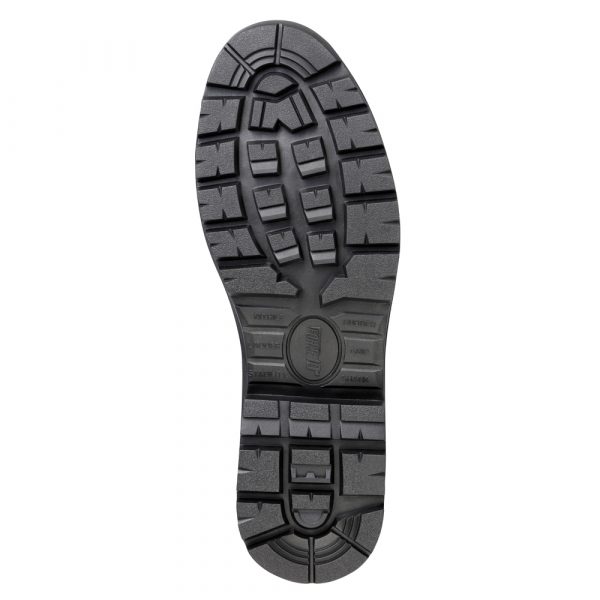

The outsole complex is a FORCE10® dual density PU nitrile rubber outsole which engineers unbelievable abrasion resistance whilst providing exceptional shock absorption and weight reduction. It’s compatible with climbing irons and can be resoled.

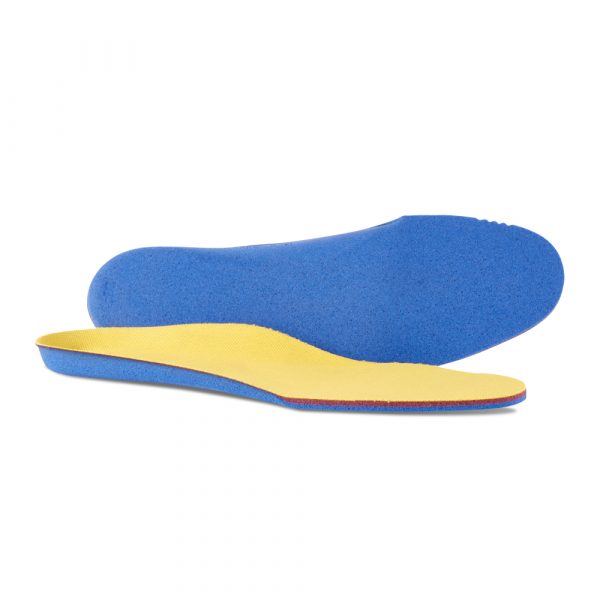

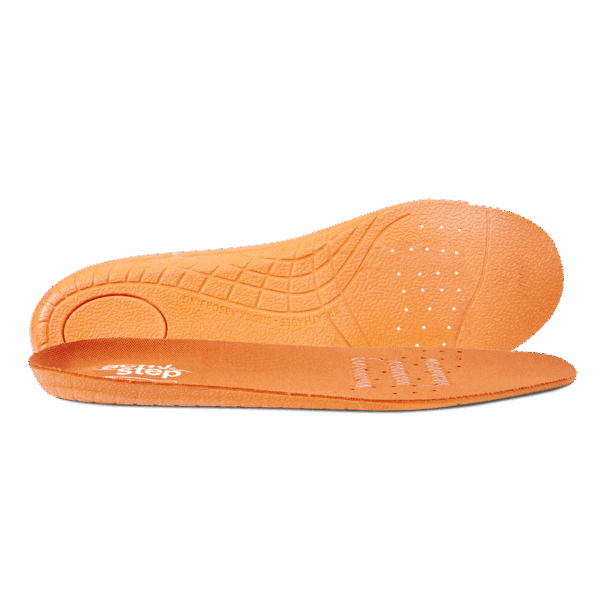

All day breathability and comfort comes from an Activ-Step® Comfort Footbed.

View additional information
Features

100% Non-Metallic Construction

Climbing Irons Compatible

Cold Insulation

Electrical Hazard

Heat Resistant Outsole to 300°C

Internal Digging Plate

Ladder Grip

Oil Resistant

Protective Midsole

Protective Toecap

SRC Slip Rated

Water Repellent Upper

Fully Waterproof

Arc Materials

Technologies
Industries

Construction

Electric Vehicles, Hybrid Power and Transmission

Rail

Utilities

Product Disclaimer
This footwear is Electrical Hazard and tested in accordance with the test method as set out within ASTM F2412-18. This protection deteriorates rapidly in humid, damp and wet environments and with wear. Electrical Hazard (EH) Safety footwear is intended as secondary source protection equipment and not for live working. This boot has been independently tested in accordance to the IEC 61482-1-1:2019 arc test methods. The results achieved are not an official rating or standard and the conclusions are not covered by the ENAC accreditation scope. The project ATPV rating for the material is 126 Cal/cm² and project rating for whole footwear was No Burns observed at 109.4 Cal/cm². Laces to the same specification from the manufacturer should be used as replacements.
Certification - CE Test Certificate
Certification No. - 2777/19163-01/E00-00
Expiry Date - 27/10/2026
Notified Body Name - SATRA
Notified Body Code - 2777
Last Amended Date - 07/02/2024
Certification - UKCA Test Certificate
Certification No. - AB0321/19158-01/E00-00
Expiry Date - 25/10/2026
Notified Body Name - SATRA
Notified Body Code - 0321
Last Amended Date - 07/02/2024
